Frame Fixing Screws (KPS & KPR Series)
Our Frame Fixing Screws are designed for secure installation of window frames, door frames, aluminium sections, and structural profiles into concrete, brick, and blockwork. The KPS & KPR series provide strong anchorage, precise alignment, and long-term durability in both residential and commercial construction projects.
Ideal for direct through-fixing applications.

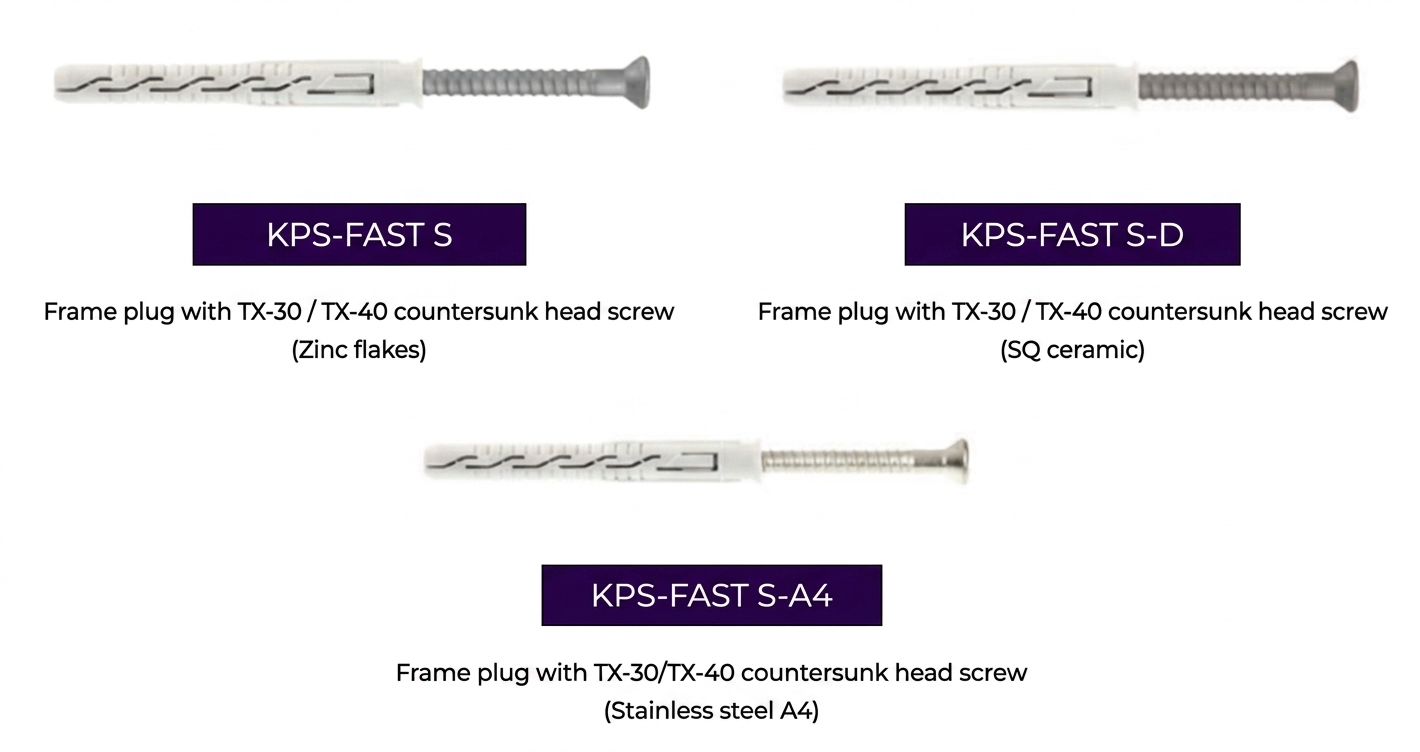

KPS SERIES – STANDARD FRAME FIXING SCREW
SPECIFICATIONS
DETAILS
Head Type
Countersunk
Drive
TX (Torx)
Material
Carbon Steel
Finish
Zinc Plated
Diameter
6mm – 10mm
Length
60mm – 200mm
Base Material
Concrete / Brick / Block
Certification
ETA-12/0272, CE Marked, R90 Fire Rated
Best For: Window & door frame installation in masonry
KPR SERIES – REINFORCED FRAME FIXING SCREW
Head Type
CountersunkDrive
TX (Torx)Material
Hardened Carbon SteelFinish
Corrosion Resistant CoatingDiameter
6mm – 10mmLength
80mm – 200mmBase Material
Concrete / Solid BrickCertification
ETA-12/0272, CE MarkedDifference Between KPS & KPR
| Feature | KPS | KPR |
|---|---|---|
| Load Capacity | Medium | Higher |
| Coating | Standard Zinc | Enhanced Protection |
| Application | Regular Frames | Heavy Structural Frames |
×
![]()
